Enerblue - Steel (27.2-80.4); (29-84 kW)

High efficiency water-to-water reversible heat pumps with scroll compressors and natural refrigerant gas (R290)

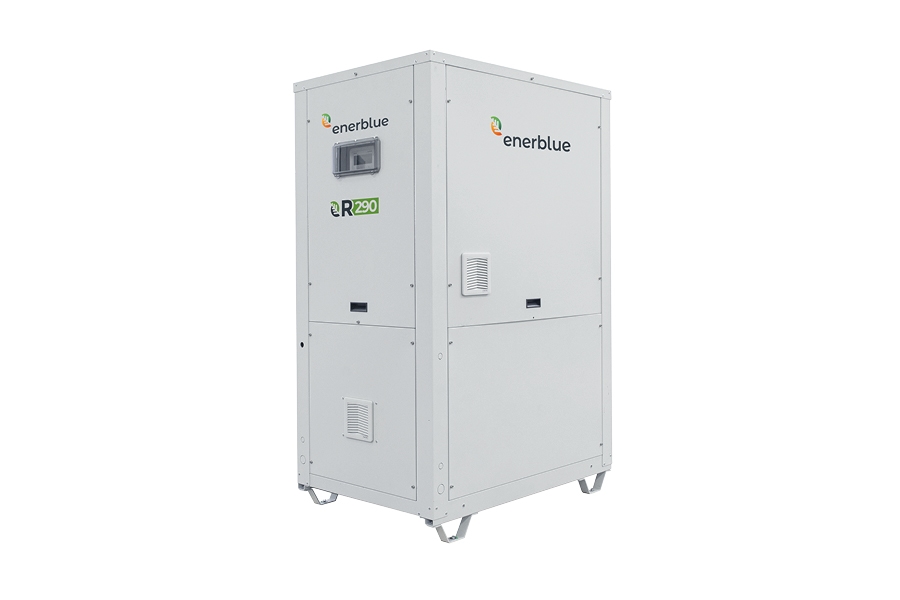

The Steel (Purple CHP W/W Scroll) (27.2-80.4) is a high efficiency water-to-water heat pumps with natural refrigerant gas R290, for extended working conditions and very high performances.

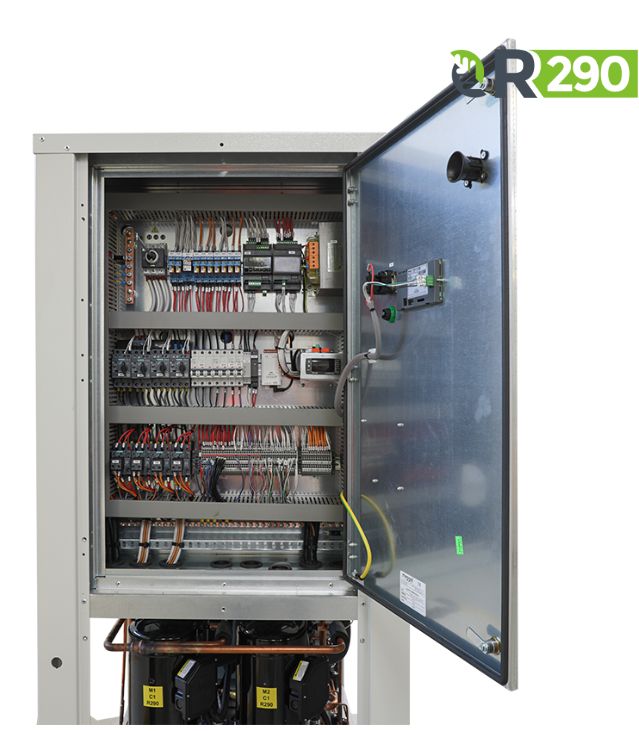

Equipped with hermetic scroll compressors and plates heat exchangers. All the units are provided with an external electric safety board to manage all the installed safety devices and always ensure the maximum safety levels. STEEL heat pumps range is reversible on water side.

Low noise configuration is available as an option.

The machine is suitable for both internal and external (outdoor) installation.

Maximum water temperature: 80 °C

Minimum ext. air temperature: -10 °C

■ Heating capacity (W7;W55) 29 ÷ 84 kW

■ Cooling capacity (W35;W7) 25 ÷ 75 kW

Reversible on water side

Scroll compressors
