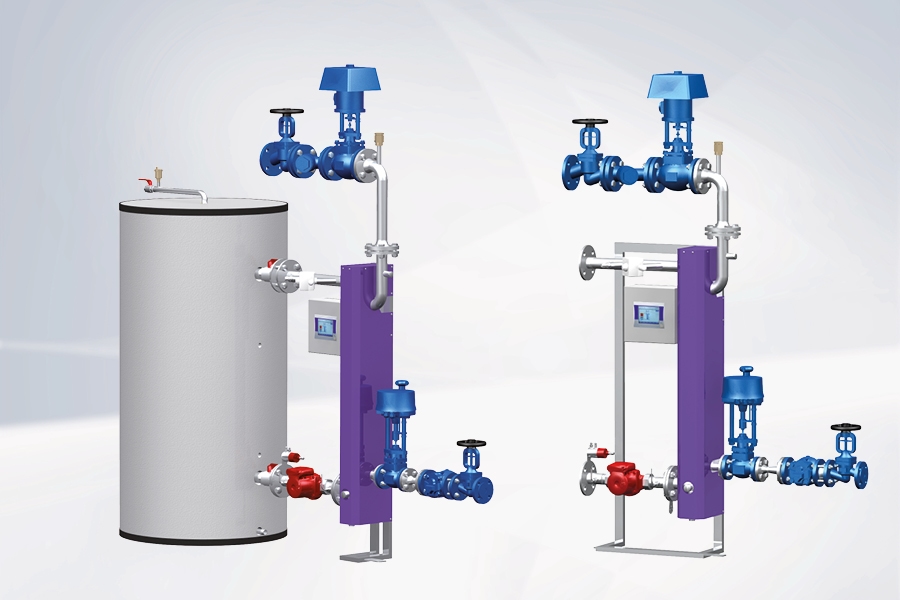

EcoTherm EDRE - water heater 50-2.000 kW

The EcoTherm EDRE is a high capacity instantaneous water heater for steam/water operation with external heat exchanger with free floating turbulator rods.

Pressure-resistant storage tank and external shell & tube heat exchanger made of high quality corrosion resistant stainless steel 1.4571/Duplex. The systems comply with the SVGW guidelines for reducing a Legionella infection risk at large-scale systems.

Highly efficient heat transfer and most extensive prevention of liming and scaling through self-cleaning effect of patented shell & tube heat exchangers with free floating turbulator rods made of stainless steel.

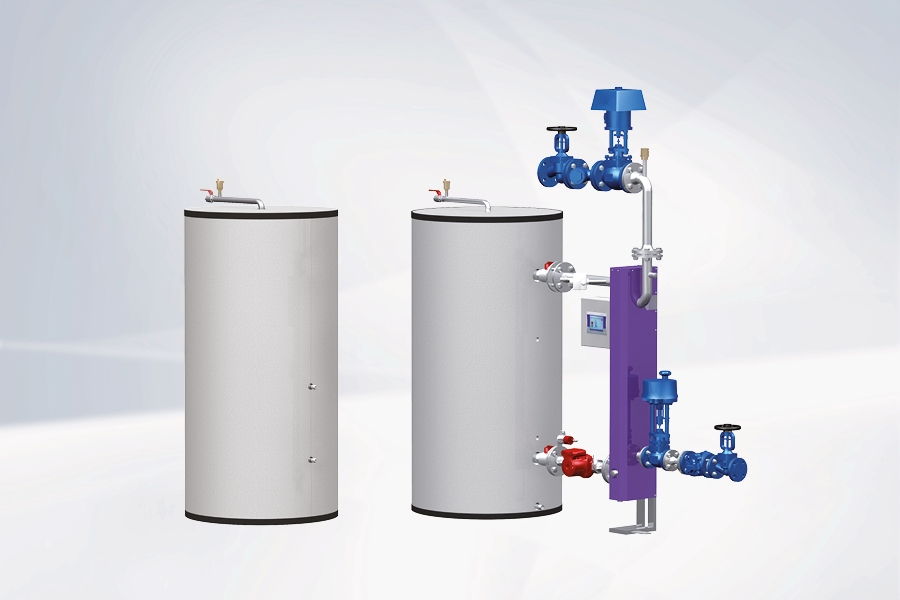

If more storage capacity is required and/or the height of the boiler room is too low, the EDRE heat exchanger can also be operated with two storage tanks or more.

Features:

■ Fibre-fleece insulation of storage tank with robust outer sheathing made of PP (RAL7037)

■ Constant hot water temperature during charging, steam-side barrier prevents overheating of the hot water in the heat exchanger

■ Microprocessor control with touch screen

■ Simple installation and short mounting time

■ Maximum pressure: secondary 6 or 10 bar; primary 6 or 10 bar; higher ratings possible on request
